EV, storage and DC power
Specifications below are example market references checked against publicly available manufacturer pages and English datasheets. Use them to shortlist, not to release a drawing.
Compact HVDC relay for DC fast-charger distribution, battery strings and PV combiner isolation in high ambient temperatures.

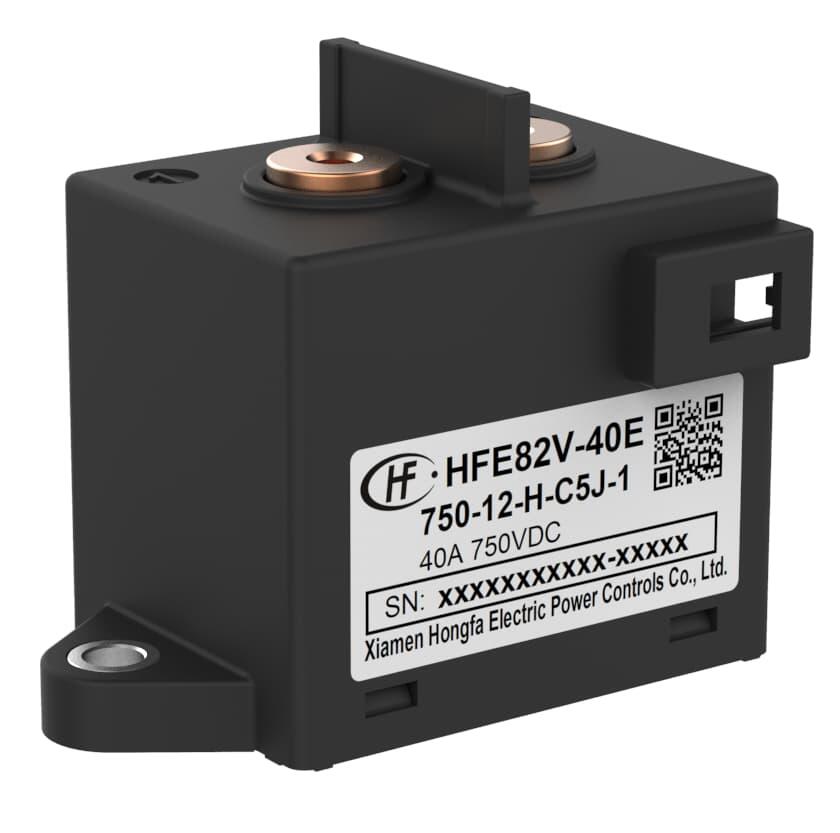

Higher-current sibling of the HFE82V-20 for BESS rack isolation, DC distribution and 800 V-class charging architectures.
PCB-mount high-voltage DC switching for string inverters and rapid-shutdown paths where a sealed contactor is oversized.
Final parameters, derating and ordering codes are always governed by the manufacturer’s latest datasheet for the exact version selected.
The model family narrows the search. The exact ordering code follows only after the load, voltage, coil, environment, standards and volume are known.
Resistive, inductive, motor, lamp, capacitor or DC fault duty
Working voltage, continuous current, inrush and switching frequency
Coil supply, tolerance, suppression and auxiliary feedback
Enclosure temperature, altitude, vibration, sealing and duty cycle
AC charging relays and high-voltage DC contactors for Mode 2, Mode 3 and fast-charging architectures.
↗02High-current switching for inverters, battery energy storage systems and DC protection.
↗04Switching and protection pathways for UPS, power distribution and emerging high-voltage DC architectures.
↗Use the manufacturer page (third-party) for current datasheets, certificates, ordering codes and engineering confirmation.
Manufacturer product page (third-party)Share the operating conditions and intended annual volume. No local availability or approval is assumed.
